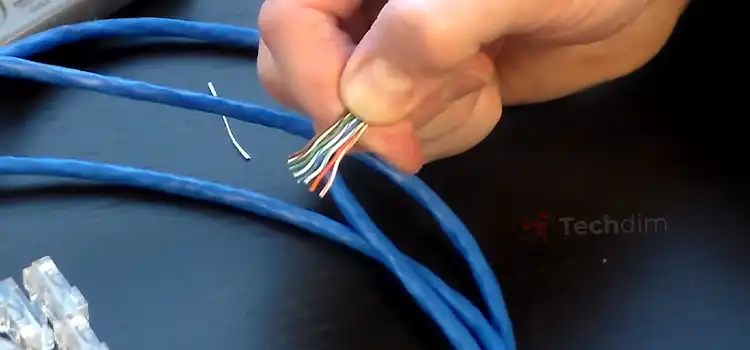

Can Cat6 Cable be Spliced? My Findings

Cat6 (Category 6) cables are a popular choice for Ethernet networking due to their ability to handle high-speed data transmissions. They are used in a wide range of applications, from home networks to large-scale data centers. However, when it comes to modifying or extending Cat6 cables, questions arise about whether they can be spliced.

Although you can splice Cat6 cables, it’s not particularly recommended. In this article, we’ll explore the concept of splicing Cat6 cables and its implications.

What is Cat6 Cable?

Cat6 cables are designed to support data transfer rates of up to 10 Gbps and provide excellent performance in reducing crosstalk and interference. This makes them ideal for demanding networking environments where high data throughput is crucial. They consist of twisted pairs of copper wires with stringent specifications to meet the Cat6 standard.

Can You Splice Cat6 Cables?

Yes, Cat6 cable can be spliced, but it is not recommended. Splicing introduces additional signal loss and crosstalk, which can degrade the performance of your network. If you do need to splice a Cat6 cable, it is important to use high-quality materials and techniques to minimize the impact on performance.

There are two main ways to splice a Cat6 cable:

Using an inline splice

This type of splice is a small device that connects two Cat6 cables together. It is typically used to repair a damaged cable or to extend the length of a cable. Inline splices are available in a variety of styles, but the most common type uses a 110-punchdown tool to connect the wires.

Soldering the wires together

This is a more permanent method of splicing a Cat6 cable, but it is also more difficult and requires specialized tools and skills. To solder the wires together, you will need to strip the insulation off the ends of the wires and then twist the exposed wires together. Once the wires are twisted together, you can solder them using a soldering iron and solder.

Once the wires are spliced together, it is important to insulate the splice to prevent moisture and dirt from getting into the connection. You can use electrical tape, heat shrink tubing, or a crimp-on connector to insulate the splice.

Issues With Splicing Cat6 Cables

Splicing, in the context of cables, involves cutting and reconnecting the wires to extend or repair them. While splicing can be done with various types of cables, it is generally not recommended for Cat6 cables due to several reasons:

Signal Degradation

Cat6 cables are engineered to minimize signal degradation and interference. Splicing can disrupt the cable’s ability to maintain the integrity of high-frequency signals, resulting in signal loss and reduced data transmission speeds.

Data Integrity

Splicing may introduce impedance mismatches or signal reflections that can lead to data packet loss, increased error rates, and reduced network reliability.

Interference

The splicing process itself can introduce electromagnetic interference and disrupt the cable’s ability to shield against external interference, which is essential for high-speed data transmission.

Alternatives to Splicing

Instead of splicing Cat6 cables, there are more appropriate alternatives:

Ethernet Couplers

Ethernet couplers are specifically designed for joining two Cat6 cables. They maintain the cable’s performance and signal integrity, ensuring a reliable connection.

Connectors

RJ45 connectors and keystone jacks are suitable for terminating Cat6 cables. These connectors are widely used for networking purposes and maintain the cable’s performance.

Crimping

If you need to modify the cable’s length or attach connectors, crimping tools and connectors designed for Cat6 cables can be used to create reliable connections without splicing.

FAQs Regarding Can Cat6 Cable Be Spliced?

Can I splice Cat6 cables to extend their length?

Splicing Cat6 cables is not recommended. It can lead to signal degradation, interference, and reduced data integrity. Instead, use Ethernet couplers or connectors designed for Cat6 cables to extend their length without compromising performance.

Why is splicing Cat6 cables a bad idea?

Cat6 cables are designed for high-speed data transmission with minimal signal loss and interference. Splicing can disrupt these properties, potentially leading to data errors, reduced network performance, and electromagnetic interference.

Can I use regular connectors to join Cat6 cables?

It’s essential to use connectors specifically designed for Cat6 cables. RJ45 connectors and keystone jacks suitable for Cat6 are readily available and help maintain the cable’s performance.

What are Ethernet couplers, and how do they work?

Ethernet couplers are devices designed to join two Cat6 cables. They maintain the cable’s performance and signal integrity, ensuring a reliable connection. Simply insert the ends of the Cat6 cables into the coupler, and it will securely connect them.

Is there any alternative to splicing if I need to modify the cable length?

Yes, you can use crimping tools and Cat6 connectors to modify the cable length or attach connectors. This is a suitable alternative to splicing and will help you maintain network performance.

Will splicing Cat6 cables work for non-critical applications?

While splicing may work for non-critical applications, it’s generally not recommended, as it can still lead to performance issues. It’s better to use proper connectors or couplers for a reliable and consistent connection.

What are the potential risks of splicing Cat6 cables?

Splicing Cat6 cables can result in signal degradation, increased interference, and reduced data integrity. This can lead to slower data transmission speeds, packet loss, and network reliability problems.

Can I repair a damaged Cat6 cable by splicing it?

Repairing a damaged Cat6 cable by splicing is generally discouraged. It’s better to replace the damaged portion of the cable or use connectors designed for Cat6 to maintain performance.

Are there specific tools for crimping Cat6 cables?

Yes, there are crimping tools designed for Cat6 cables that work with Cat6 connectors. These tools ensure that you create reliable connections while maintaining the cable’s performance.

In conclusion

Cat6 cables are not meant to be spliced due to the potential risks associated with signal degradation, interference, and reduced data integrity. Instead, use Ethernet couplers, connectors, or crimping tools designed for Cat6 cables when you need to extend or connect them. These alternatives will ensure that your network maintains its high-speed data transmission capabilities and reliability while minimizing the risk of performance issues. Splicing should be avoided to maintain the integrity of your Cat6 network.
